Send InquiryGCE JetControl 600 High pressure Regulators
GCE JetControl 600 High pressure Regulators Specification
- Condition
- New
- Motor Type
- AC Motor
- Material
- Brass
- Color
- Gold
- Pressure adjustment
- Knob control
- O-ring material
- EPDM
- Number of gauges
- Two
- Usage
- Industrial gases
- Regulator type
- Single stage
- Outlet connection
- G3/8"
- Inlet connection
- G5/8"
- Body color
- Gold
- Max inlet pressure
- 300 bar
- Mounting
- Panel mount
- Outlet pressure range
- 0-60 bar
- Gauge material
- Stainless steel
GCE JetControl 600 High pressure Regulators Trade Information
- Minimum Order Quantity
- 100 Pieces
- Payment Terms
- Cash in Advance (CID), Cheque, Cash Advance (CA)
- Supply Ability
- 10000 Pieces Per Month
- Delivery Time
- 10 Days
- Sample Available
- Yes
- Sample Policy
- If order is confirmed we will reimburse the sample cost
- Main Domestic Market
- All India
About GCE JetControl 600 High pressure Regulators
GCE JetControl 600 High pressure Regulators
Jetcontrol is a single stage with two gauge regulator
Ideal for use in oil refineries, laboratories or industrial processes which requires stable & precise delivery of high pressure industrial gases
Regulators are designed, manufactured & tested to operate max inlet pressure upto 300bar & outlet pressure upto 206bar.
Body made of high-tensile brass, transparent powder painted & chemically stabilized
Bonnet made of brass, transparent powder painted & chemically stabilized
Diaphragm is of two-layer with diameter 40mm and pre-shaped stainless steel
Inlet stem & nut made of high-tensile brass & complying to BS-341 standard
Heart valves made of brass body sealed by high-grade PA
Pressure Gauges: Safe design, bulkhead 50mm gauges, scale in Bar, accuracy class 2,5%
In this type of regulator safety valve is not present. It is a independent part of downstream gas line
Pressure Setting: Stainless steel T-bar, brass pressure adjusting screw in bronze bush
Precision Regulation for Industrial Applications
The JetControl 600 is built for consistent, safe delivery of high-pressure industrial gases. Its solid brass construction offers durability, while precision components like the stainless steel gauges and EPDM O-rings guarantee reliability and gas compatibility. Whether you are involved in manufacturing, laboratory work, or pneumatic systems, this regulator adapts seamlessly to specialized requirements.
Easy Installation and User-Friendly Operation
Engineered with a clear focus on operator convenience, the regulator features a panel mount design and straightforward knob adjustment for fine control over output pressure. The inclusion of two gauges enables easy monitoring of inlet and outlet conditions at a glance, making it simple to maintain desired settings and respond to fluctuations in real time.
FAQ's of GCE JetControl 600 High pressure Regulators:
Q: How is the JetControl 600 High Pressure Regulator installed?
A: The JetControl 600 is designed for panel mounting, allowing secure installation in a control panel or workstation. Simply use the designated mounting points and connect the inlet (G5/8") and outlet (G3/8") fittings as per your industrial gas system requirements.Q: What types of gases can this regulator be used with?
A: This regulator is suited for a wide range of industrial gases, provided they are compatible with brass materials and EPDM O-rings. Common applications include use with inert, non-corrosive gases in manufacturing, laboratory, or industrial environments.Q: When is a single stage regulator like the JetControl 600 preferred?
A: A single stage regulator is ideal when inlet pressures are relatively stable and quick, precise adjustments to output pressure are required. The JetControl 600 is particularly suited for situations that do not involve large or sudden fluctuations in input gas pressure.Q: Where can the JetControl 600 be sourced from?
A: The JetControl 600 is available directly from GCE or through authorized exporters, manufacturers, and suppliers in India. Ensure you are purchasing from reputable sources to guarantee authenticity and after-sales support.Q: What is the process for adjusting the outlet pressure?
A: Pressure is adjusted using the ergonomically designed knob control on the regulator's front. As you rotate the knob, the outlet pressure changes accordingly and readings can be verified using the twin stainless steel gauges provided.Q: How does the dual gauge setup benefit users?
A: The dual gauge configuration displays both inlet and outlet pressures simultaneously, enabling users to monitor system status in real time. This feature enhances operational safety and helps prevent over-pressurization or gas wastage.Q: What makes the JetControl 600 suitable for industrial environments?
A: Its robust brass construction, stainless steel gauges, EPDM sealing, and gold finish provide both durability and resistance to industrial wear, making it a reliable choice for continuous operation in demanding conditions.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Welding, Cutting Equipment & Accessories Category
Heat-Resistant Welder Suit
Minimum Order Quantity : 100 Pieces
Weight : 200600 Grams (g)
Material : Polyester
Color : Gray
Condition : New
Leather Apron & Sleeves
Price 120 INR
Minimum Order Quantity : 100 Pieces
Weight : 100250 Grams (g)
Material : Leather
Color : White
Condition : New

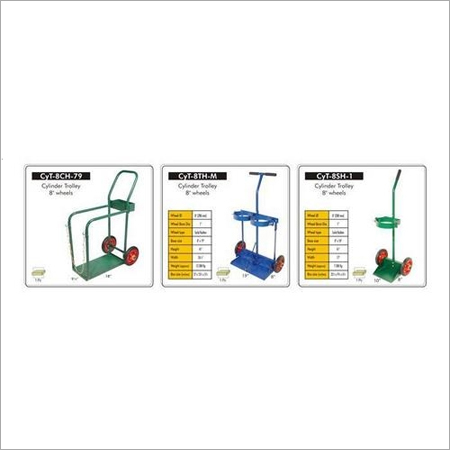

Cylinder Trolley
